CARTRIDGE FILTER HOUSING
QPV-STYLE
QPV-Style

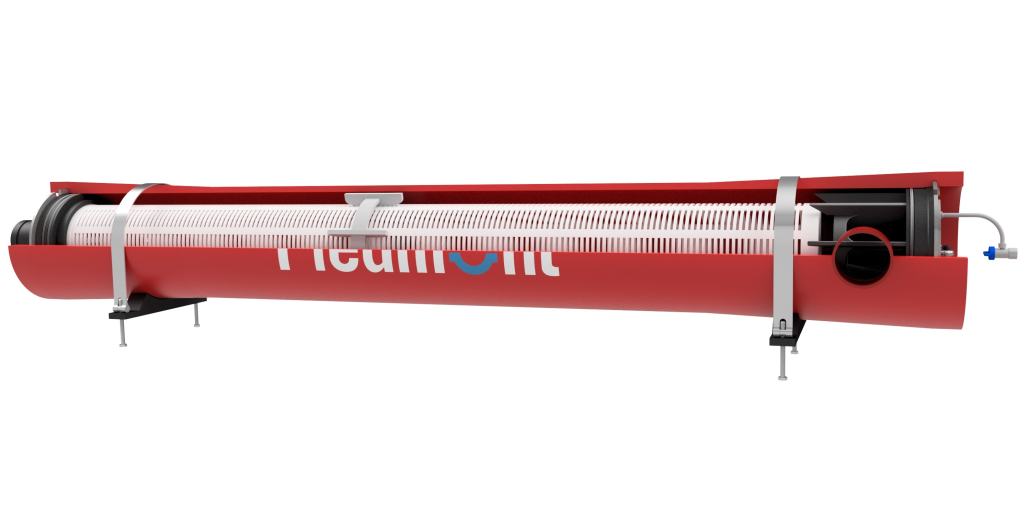

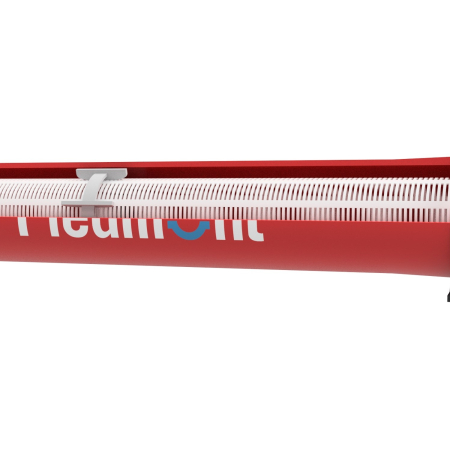

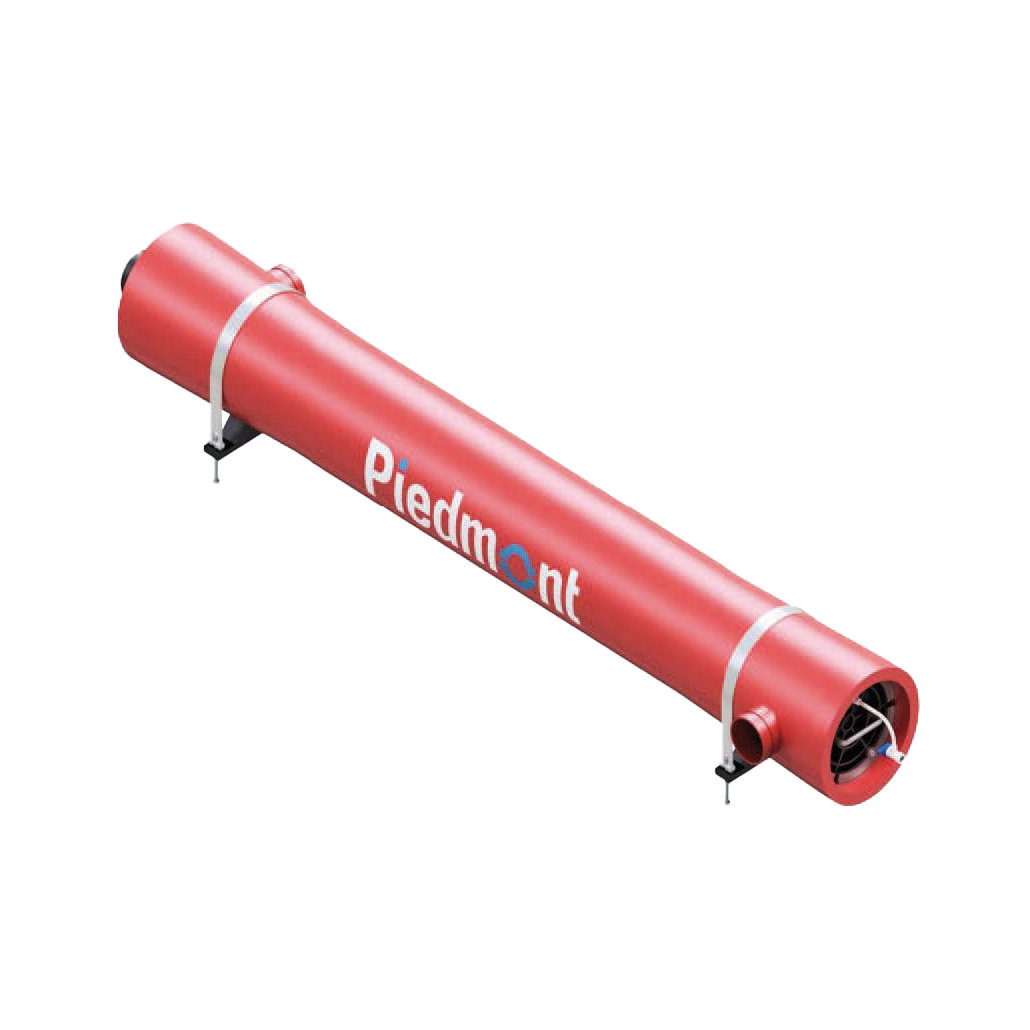

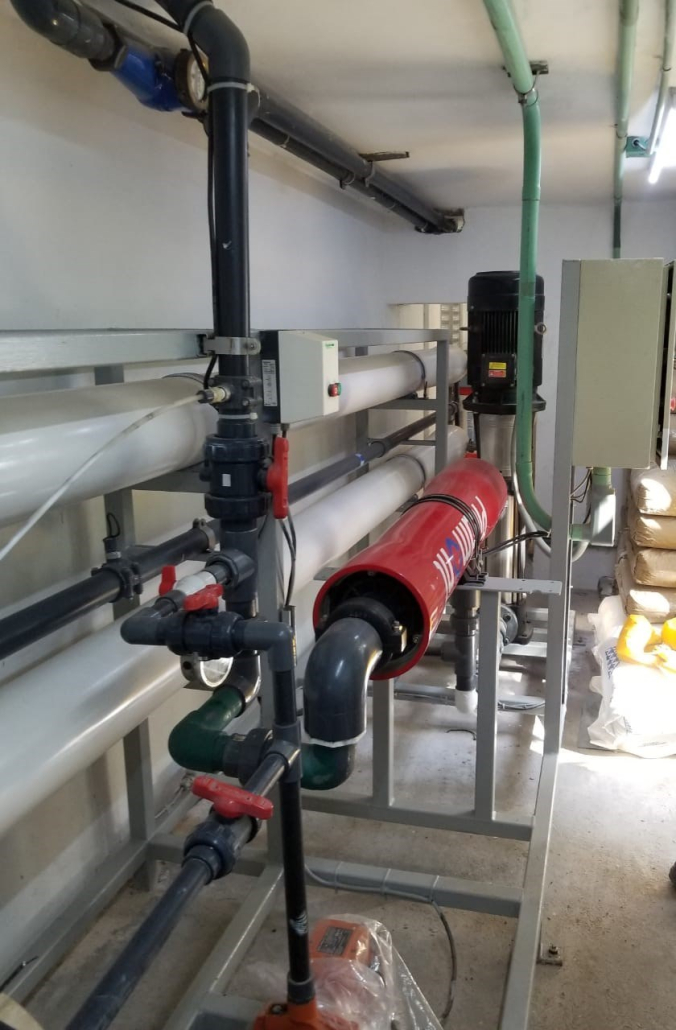

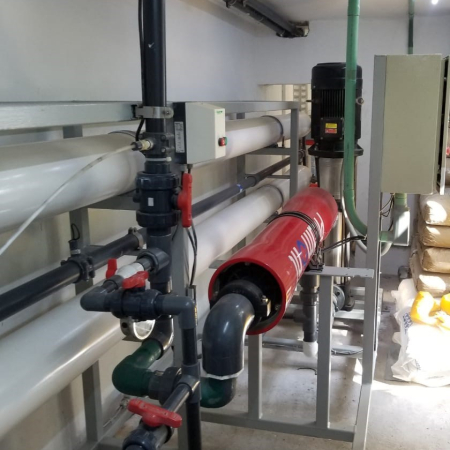

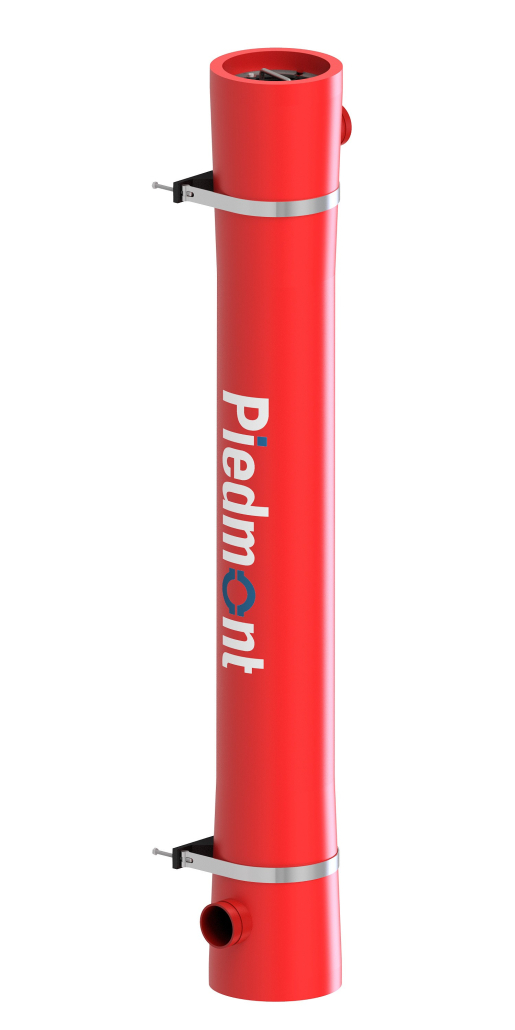

The QPV-Style housing is built from fiberglass-reinforced polyester (FRP), giving it high mechanical strength and chemical resistance. Its design—including an HDPE distributor plate and PA + FRP support rods—accepts either up to seven universal 2.5″ cartridges or a single 40″/60″ High-Flow cartridge from various manufacturers, with no special adapters required. Featuring 3″ grooved connections that mate easily with Piedmont Pacific couplings, the QPV-Style enables rapid installation and straightforward maintenance, minimizing downtime.
Characteristics
| Flow rates: | 16-33m3/h |
| No. Elements: | 7 |
| Elements length: | 30/40/50 inches |
| Cartridge flow: | Outside – Inside |
| Housing layout: | Horizontal / Vertical |
| Features: | Quick opening, very manageable |

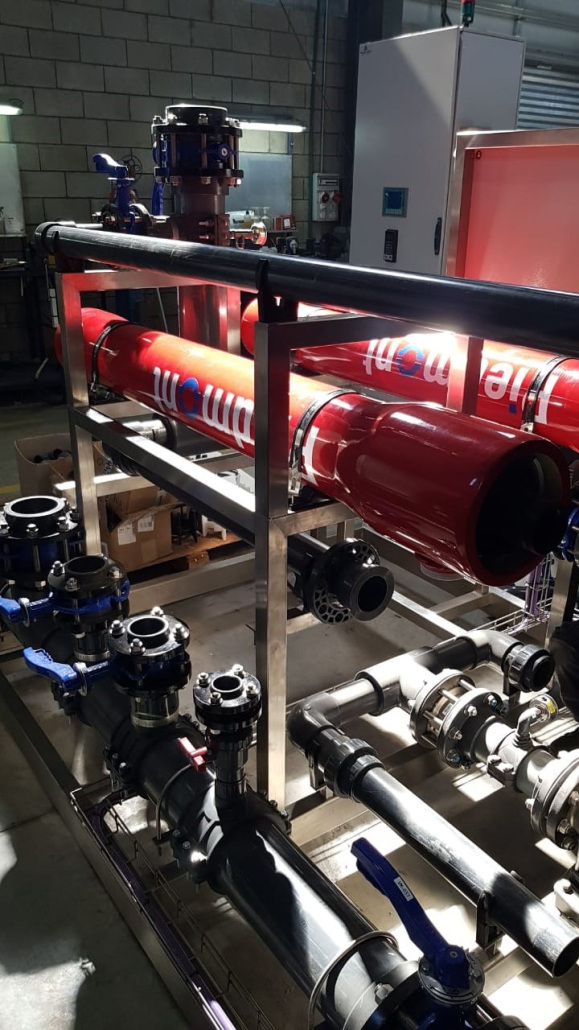

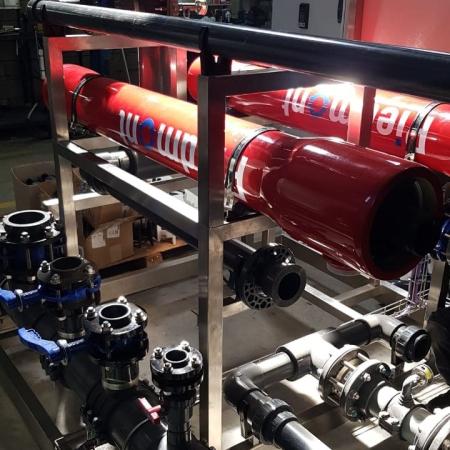

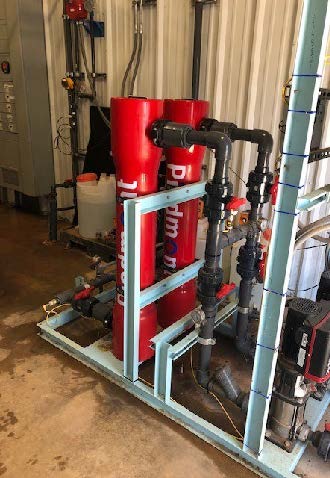

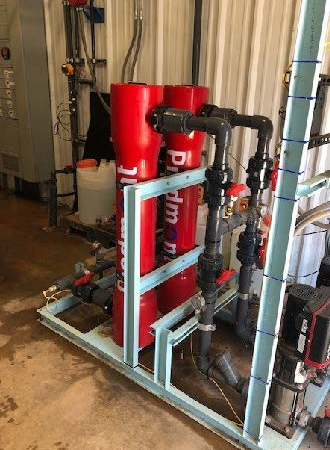

| Ideal for: | Modular, skid or container |
| Design pressure: | 10 bar |
Features
- Designed EN13121
- Design temperature s up to 60 C
- 10 bar / 150 psi Design pressure
- Horizontal and vertical configuration available
- Coupling connection available
Cartridges
- Reinforced, state of the art internal cartridge support rods made out of FRP and polyamide and Noryl material with knife-edge sealing for Double Open End (DOE) cartridge connection.
- Suitable for both string wound and melt-blown cartridges and High flow
- Internal support rod for string wound and melt-blown

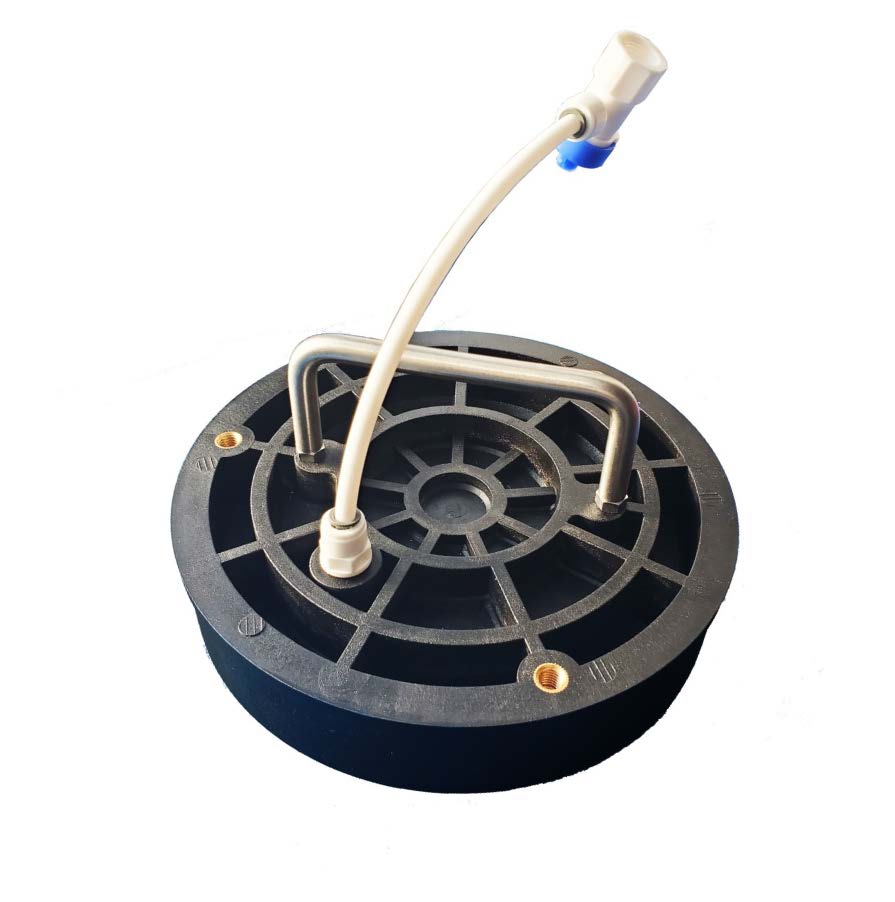

- High-speed assembly nut for easy and fast cartridge replacement
- Careful selection of materials allowing for design temperatures of 60C
- Absence of glue
Materials
Images
Documents
QPV-Style Datasheet
FRP Filter Housing Complete Brochure
Cartridges

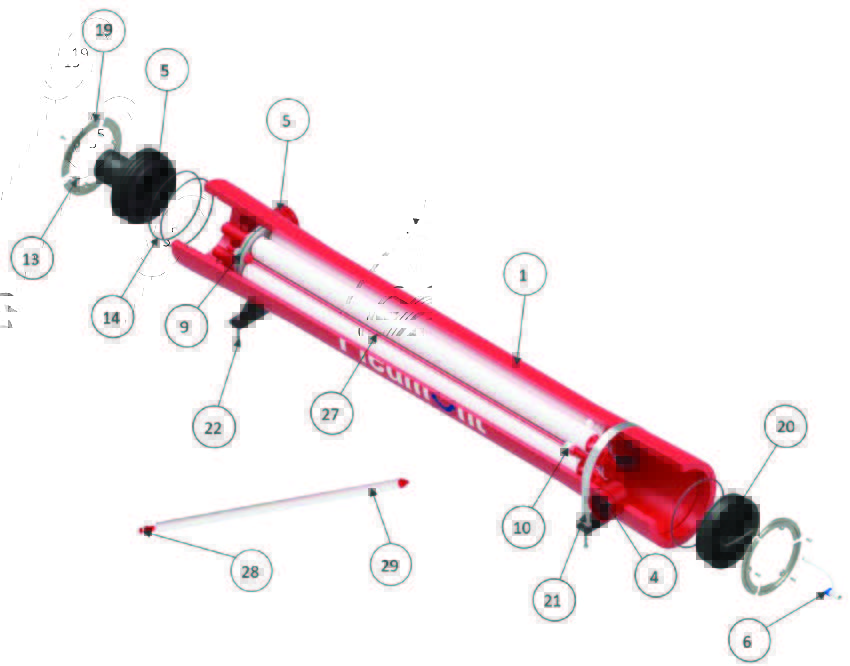

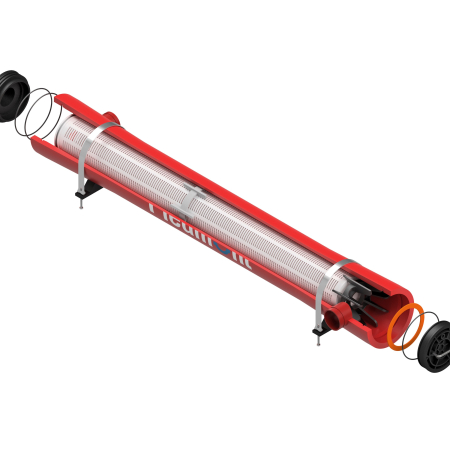

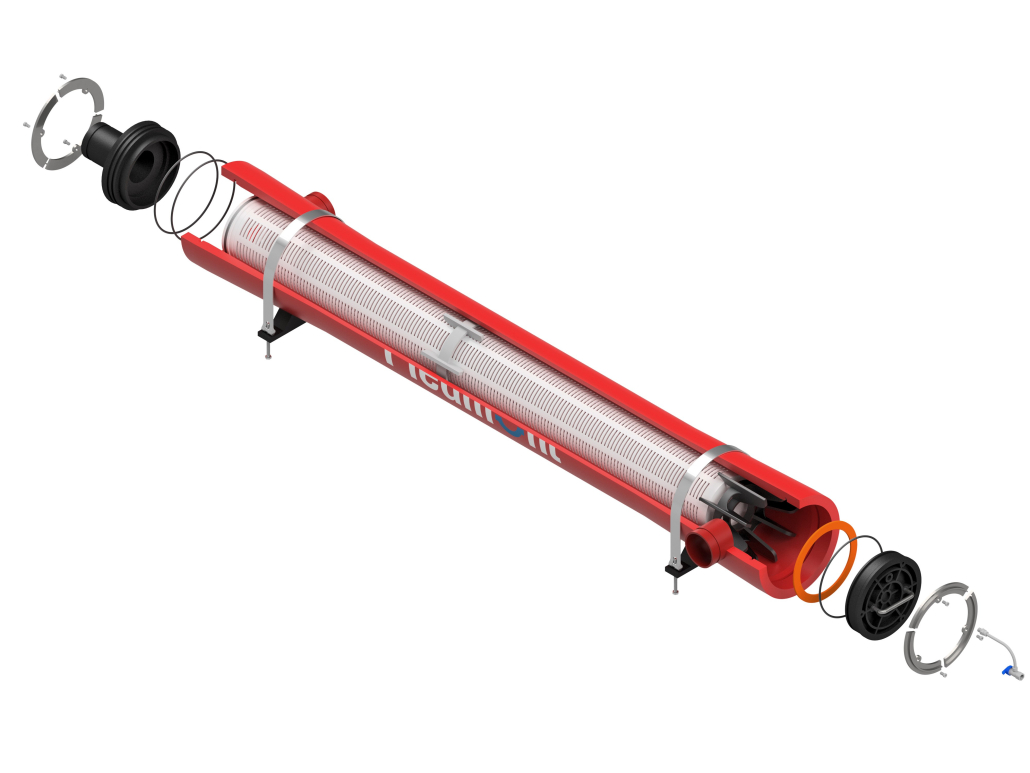

- 1. Shell & cap / Main body: FRP
- 4. Inlet flange: Plastic
- 5. Outlet flange: Plastic
- 9. Tube sheet: HDPE
- 10. Guide plate: HDPE
- 13. Closure bolts: Super Duplex
- 14. Main body gaskets: EPDM
- 19. Locking rings: FRP
- 20. Caps: ABS
- 21. Straps: Rubber-316SST
- 22. Strap Bolts: 316SST
- 27. Support rod: Noryl GF15 + FRP
- 28. Internal support rod: Noryl GF15 + FRP
- 29. Filter element: PP
High Flow

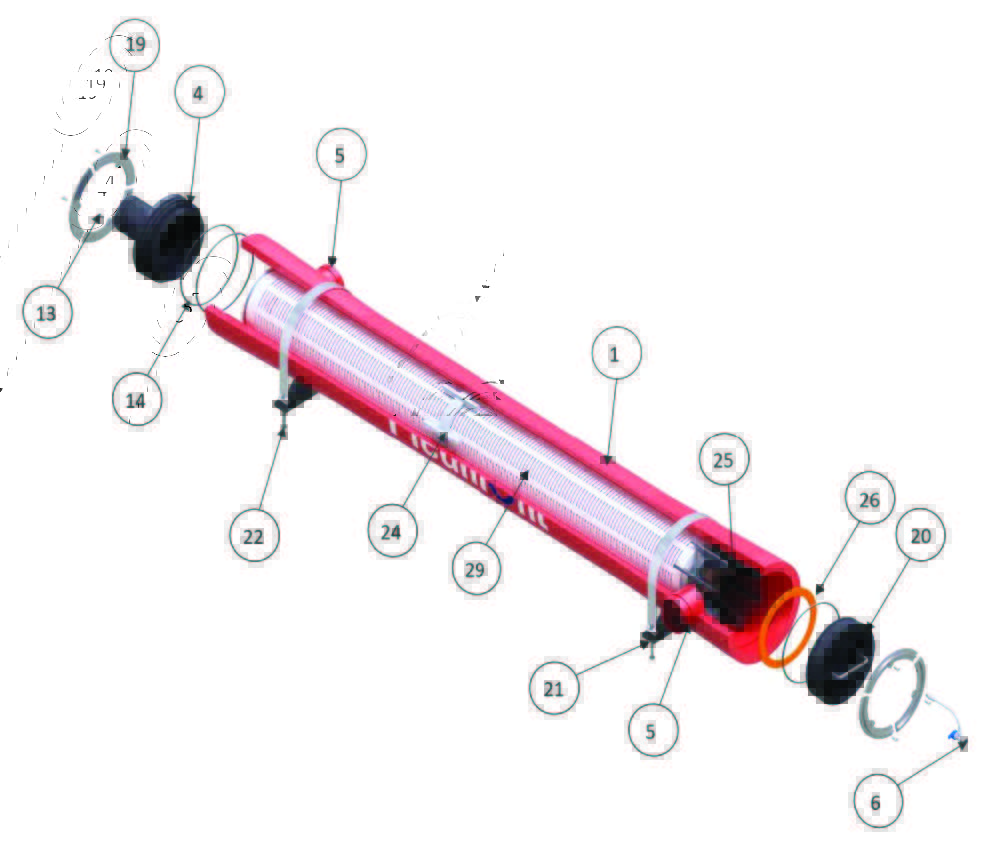

- 1. Shell & cap / Main body: FRP
- 4. Inlet flange: ABS
- 5. Outlet flange: Plastic
- 13. Closure bolts: Super Duplex
- 14. Main body gaskets: EPDM
- 19. Locking rings: FRP
- 20. Caps: ABS
- 21. Straps: Rubber-316SST
- 22. Strap Bolts: 316SST
- 24. Thrust ring: PP
- 25. Guiding frame: HDPE
- 26. Adjustment rings: ABS
- 29. Filter element: PP
TABLE OF SPECIFICATION

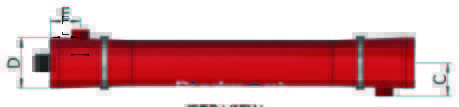

measurements
QPV-STYLE SPECIFICATIONS
Cartridges
(Qty. x Length)
Maximum Flow in gpm
Maximum Flow in m3/h
N1 / N2 (inch / mm)

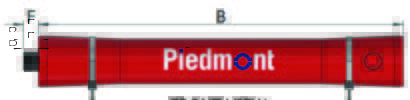

A (inch / mm)
B (inch / mm)
C (inch / mm)
D (inch / mm)
E (inch / mm)
F (inch / mm)
QPV-PCF-7-30
QPV-STYLE
7 x 30
86
20
3 / 80
5 / 117
51 / 1315
6 / 160
8 / 200
6 / 150
2 / 65
QPV-PCF-7-40
QPV-STYLE
7 x 40
115
26
3 / 80
5 / 117
56 / 1420
6 / 160
8 / 200
6 / 150
2 / 65
QPV-PCF-7-50
QPV-STYLE
7 x 50
143
33
3 / 80
5 / 117
72 / 1825
6 / 160
8 / 200
6 / 150
2 / 65
QPV-PCF-1-40
High Flow QPV-STYLE
1 x 40
176
40
3 / 80
5 / 117
51 / 1315
6 / 160
8 / 200
6 / 150
2 / 65
QPV-PCF-1-60
High Flow QPV-STYLE
1 x 60
264
60
3 / 80
5 / 117
72 / 1825
6 / 160
8 / 200
6 / 150
2 / 65
Our standard filter housings are designed with Piedmont couplings (or similar) for a more economic and simple connection to your piping. Hoist (lifting arm) optional.
