PRODUCTS
FiberMoveTM
Assets

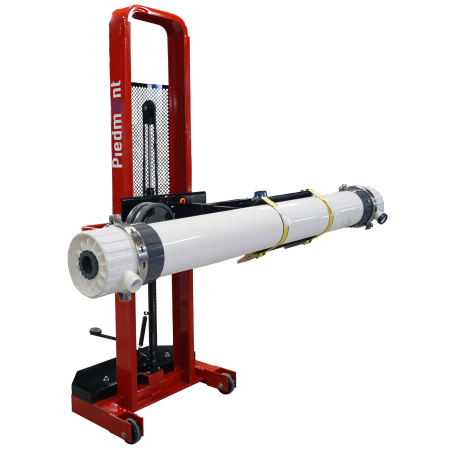

Designed to install and remove all UF modules on the market, the FiberMoveTM is easily and safely maneuvered by a single person.
Components
The frame is built out of steel 1 1/8 and reinforced plates. The attachment arm is also made of steel with an EPM rubber cover to protect de membrane module when being moved.
All components are standards and can be easily maintained or changed if ever necessary.
Description
- Telescopic attachment arm with 2 straps to hold module in place
- Telescopic arm moves forward an extra 4” to provide additional reach
- Built-in hydraulic system to raise and lower the module
- The attachment arm can be raised up to 48”
- Handle to rotate module from vertical to horizontal position
- Lockable caster for added safety
- Compact footprint with 360° turning radius for optimal maneuverability
Images
Dimensions
Height: 91”
Length: 57”
Width: 35”
Weight: 630 lbs
Minimal charge diameter: 6” ½
Maximal charge diameter: 10”
Maximal charge weight: 150 lbs
